Raw material diameter: 4-14mm Breaking length:3-5cm;20cm;30cm

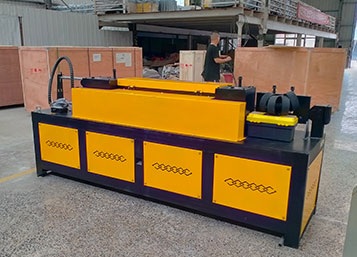

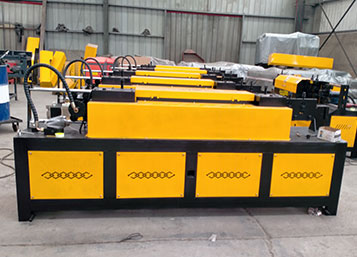

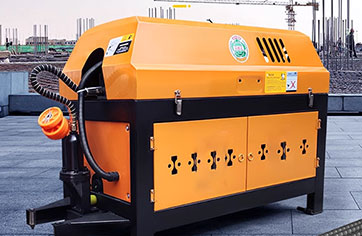

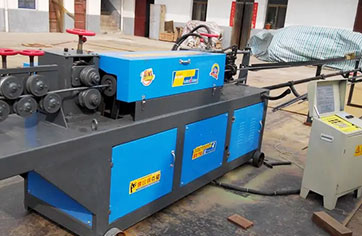

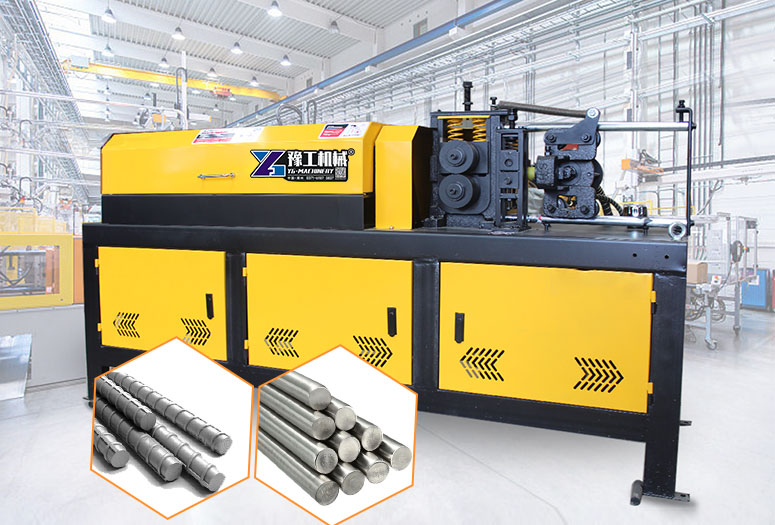

The YG steel bar straightening and cutting machine can process round steel bars with diameters ranging from 4mm to 14mm, rebar bars with diameters ranging from 4mm to 12mm, and other types of steel bars. It is widely used in construction projects such as houses, tunnels, bridges, and more.
| Model | YG4-12 | YG4-14H | YG4-14S | YG4-14B | YG4-14BA |
| Turn off the engine | 9+5.5KW | 4KW | 5.5KW | 5.5KW | 5.5KW |
| Traction power | 4KW | 15KW | 11KW | 15KW | |
| Rectifying power | 9KW | 15KW | 11KW | 15KW | |
| Diameter of round steel | 4-12mm | 4-14mm | 4-14mm | 4-14mm | 4-14mm |
| Rebar diameter | 4-10mm | 4-12mm | 4-12mm | 4-12mm | 4-12mm |
| Straightening speed | 0-55m/min | 35-55m/min | 35-65m/min | 0-80m/min | 0-100m/min |
| Total weight | 550kg | 850kg | 950kg | 960kg | 1100kg |
| Dimensions | 2050*650*1100 | 1800*750*1400 | 2400*750*1400 | 2400*750*1400 | 2400*750*1400 |

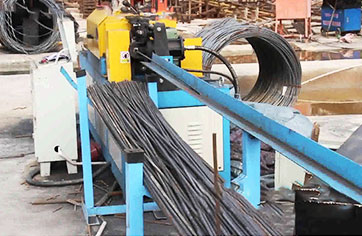

It is used for processing various round steel, rebar, cold drawn wire and other steel rods.
The finished products of YG steel bar straightening and cutting machine have neat cuts, small errors and good performance.
1. Pure copper motor: higher power, faster speed, and energy saving.
2. Fully automatic CNC panel: easy to operate, simple to use, integrated, simple, and labor-saving. The language can be customized to suit your needs;
3. Precise cutting: cutting error of ±5 mm, straightening error rate less than 0.2%.

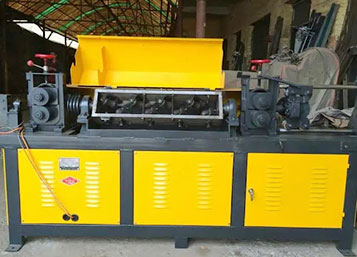

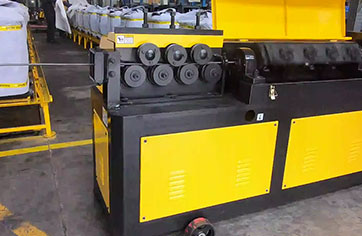

Yugong steel bar straightening and cutting machine has a heavy-duty eight-wheel straightening frame, 12 chrome-plated straightening wheels; four-wheel material feeding port; single oil pipe, high-speed, upgraded special oil pump.

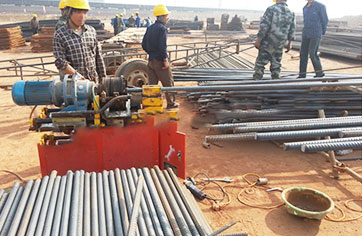

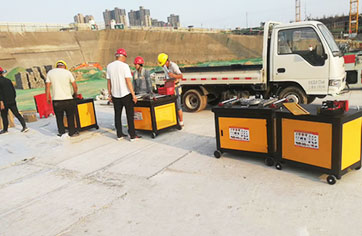

Suitable for various construction sites such as tunnel construction, construction sites and bridge construction.
