Work efficiency:: 13-60m³/h Transportation distance:0-500м

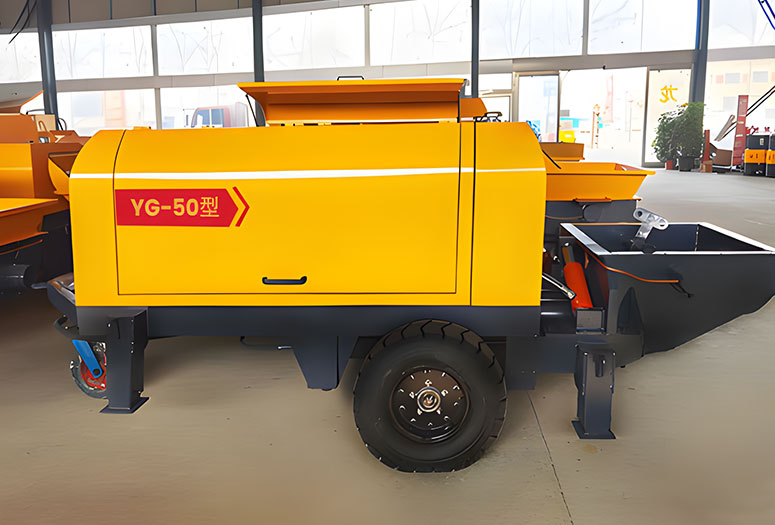

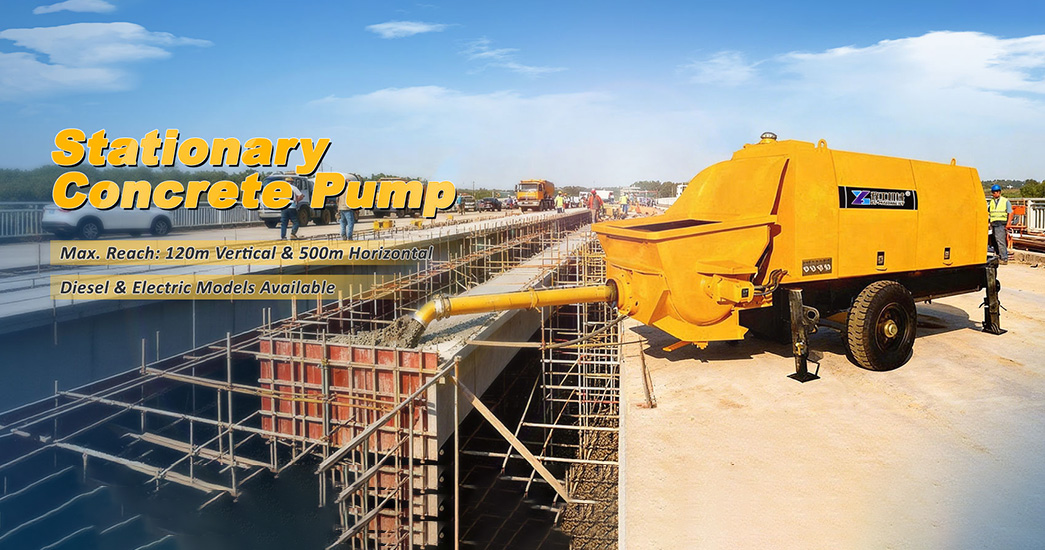

A stationary concrete pump, also known as a secondary structural column pump, is suitable for transporting foamed cement, mortar, and fine-grained concrete in various engineering structures. It is primarily designed for certain special construction conditions or tight spaces where equipment size is limited, creating inconvenience during construction or difficulties in completing the work.
Technical Parameters

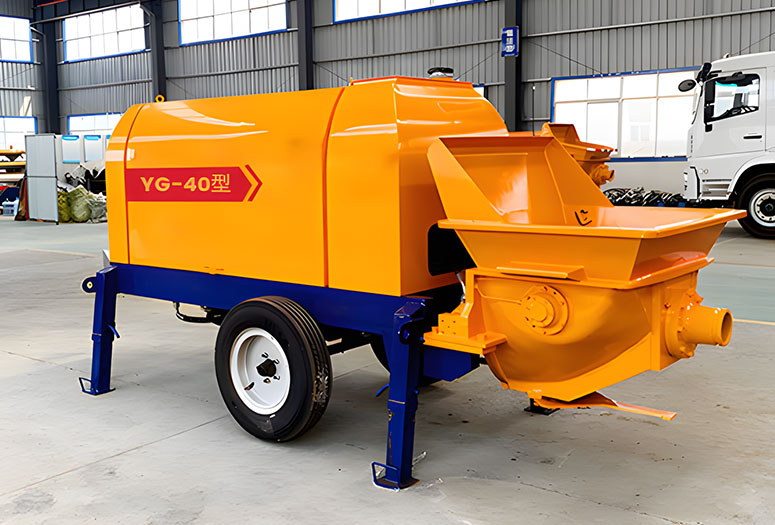

| Model | YG-30 | YG-40 | YG-50 | YG-60 |
| Engine power | 37kw | 45kw | 55kw | 90kw |
| Work efficiency | 13-15m³/h | 20-25m³/h | 30-35m³/h | 55-60m³/h |
| Working pressure | 20mpa | 23mpa | 23mpa | 23mpa |
| Filler size | 30mm | 40mm | 40mm | 50mm |
| Vertical distance | 20-60m | 30-130m | 30-150m | 30-150m |
| Horizontal distance | 50-150m | 50-350m | 50-500m | 50-500m |
| Feed pipe diameter | 80-125mm | 80-125mm | 80-125mm | 125mm |
| Total weight | 1.5-2t | 2.2t | 2.2t | 3.5t |
| Dimensions | 3.8*1.6*1.8m | 3.88*1.65*1.68m | 4.3*1.6*1.8m | 4.3*1.6*1.8m |
1★ The S-shaped distribution valve is used for pumping fine-aggregate concrete and mortar.
2★ The main oil pump is equipped with a deformed plunger pump, offering high efficiency and high pressure.
3★ The hydraulic system features independent three-circuit control, a highly reliable glass plate, and a cemented carbide cutting ring, providing wear resistance and a long service life.
4★ The pump mechanism is equipped with a dual-cylinder piston mechanism with improved performance and reliable operation.

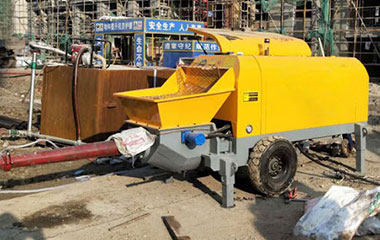

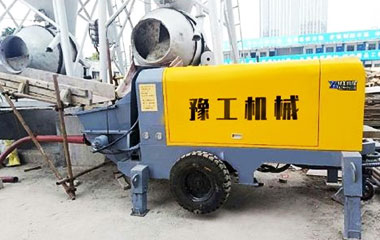

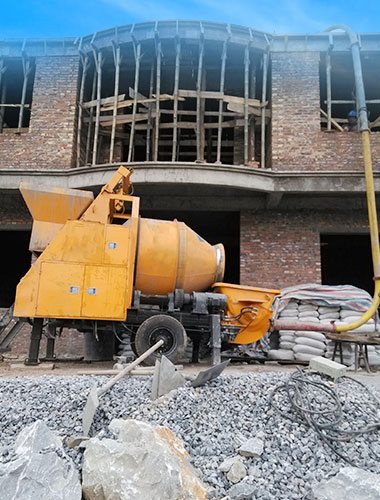

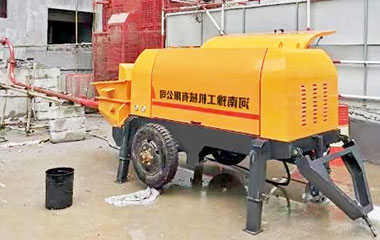

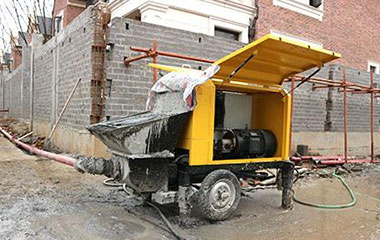

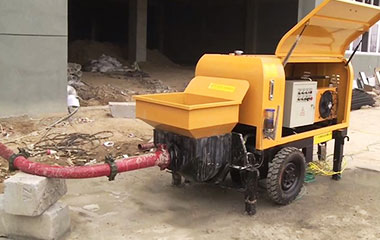

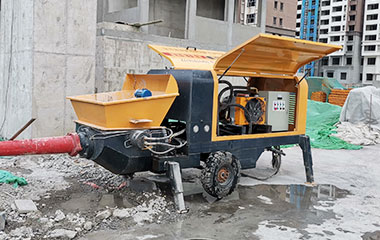

Concrete pumps are widely used in the construction of housing, reservoirs, hydroelectric power stations, ports, docks, tunnels, subways, mines and other places.
